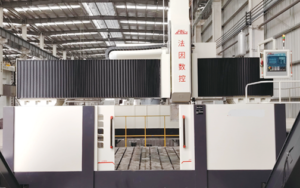

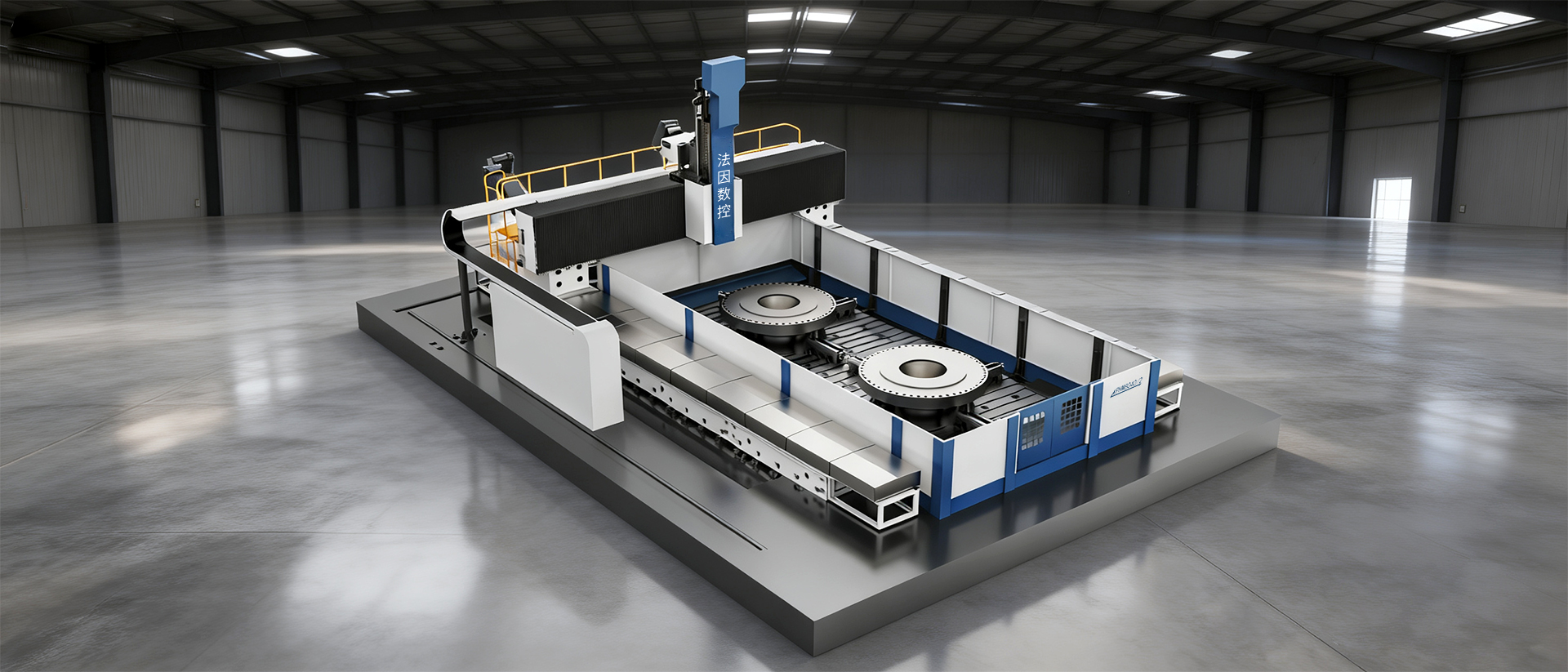

PHM series gantry movable CNC drilling and milling machine

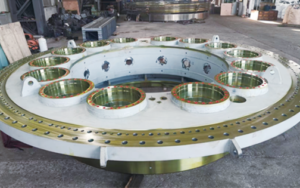

Suitable for industries such as wind power, pressure vessels, engineering machinery, chemical engineering, and environmental protection, the gantry mobile high-speed drilling and milling machine adopts a fixed worktable and gantry movement method, and has various processing functions such as milling, drilling (drilling, expanding, reaming), and countersunking. Mainly suitable for CNC machining of various types of parts such as gear rings, connecting flanges, and wind turbine spindles in the wind power industry. We can customize design and manufacturing according to customer needs.
Products detail
| Drilling unit | Parameter | PHM6030 | PHM8040 | PHM12050 | PHM16060 |
| Processing range | length × width | 6000*3000 | 8000*4000 | 12000*5000 | 16000*6000 |
| workbench | T-slot width | 28 | |||
| Spindle | quantity | 1 | |||
| spindle taper hole | BT50 | ||||
| spindle speed | 30-3000r/min | ||||
| Maximum output power/torque | 37/470（1100optional） | ||||
| Vertical stroke of slider | mm | 800/1200 | 800/1200 | 800/1200 | 1800/2500 |
| positioning accuracy | X、Y axis（mm/full length） | ≤0.04 | ≤0.05 | ≤0.06 | ≤0.08 |
| Repetitive positioning accuracy | X、Y axis（mm） | ≤0.025 | ≤0.030 | ≤0.035 | ≤0.05 |
| Electrical system | CNC system | Siemens 828D |
*The above parameters are subject to change without prior notice.
