Products detail

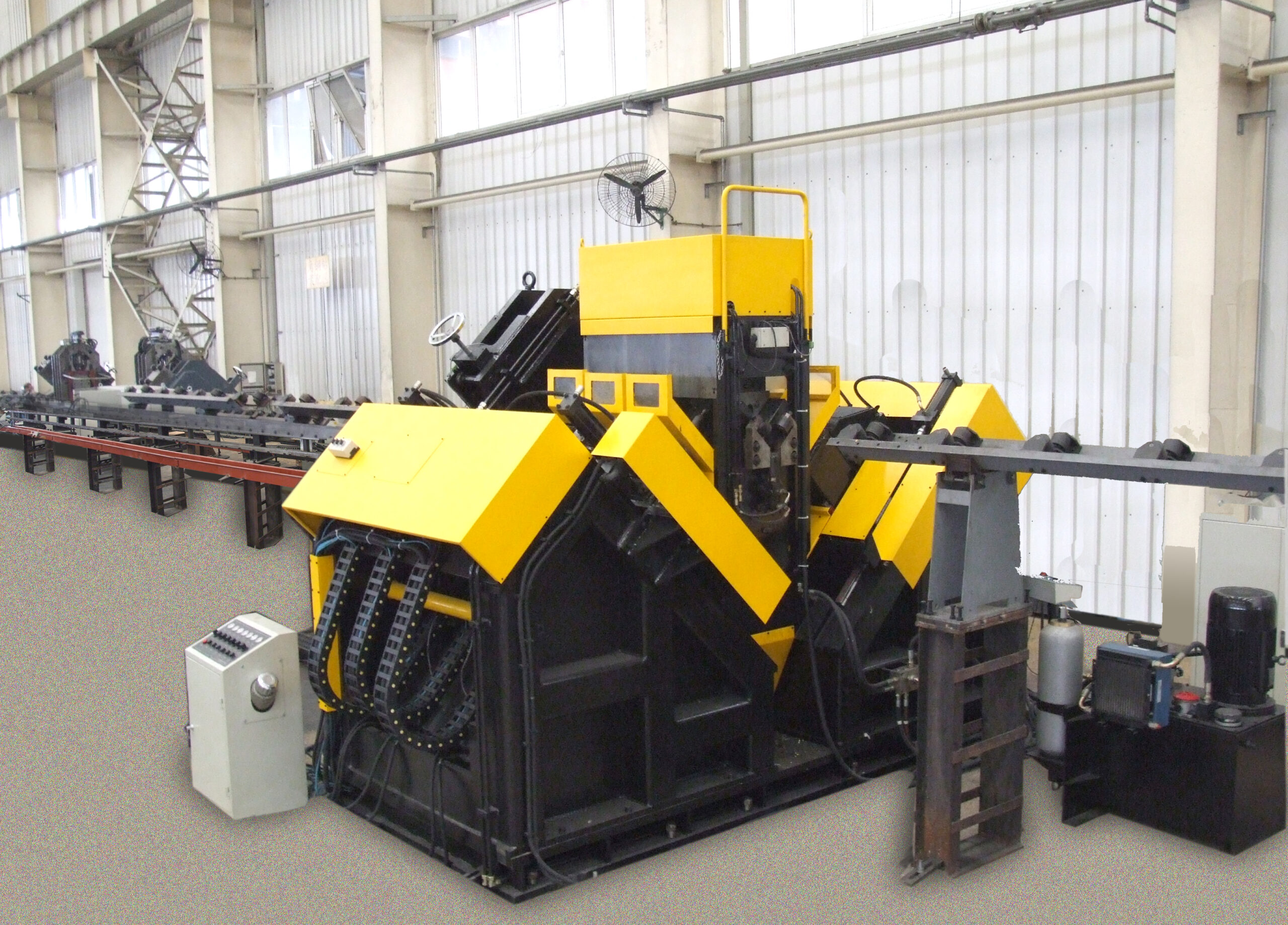

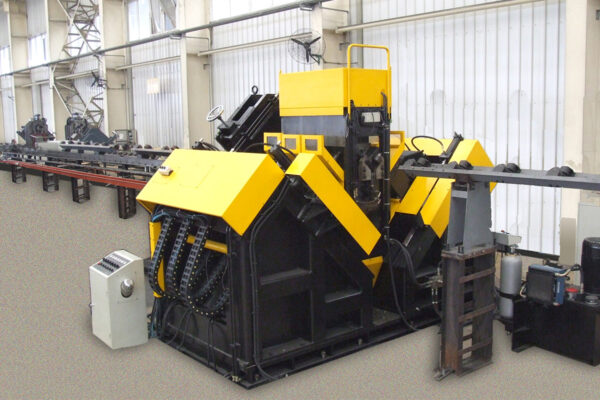

| Device Model | ADM2532 | ADM3635 | unit |
| Scope of processing angle steel | 90*90*6~250*250*32 | 90*90*6~360*360*35 | mm |
| Number of spindles on each side | 3 | Qty. | |
| Maximum drilling diameter | Φ26 | Φ40 | mm |
| spindle speed | 0~6000 | rpm | |
| spindle power | 11 | 15 | kW |
| Typing ability | 1200/1500（optional） | kN | |
| Optional items | |||

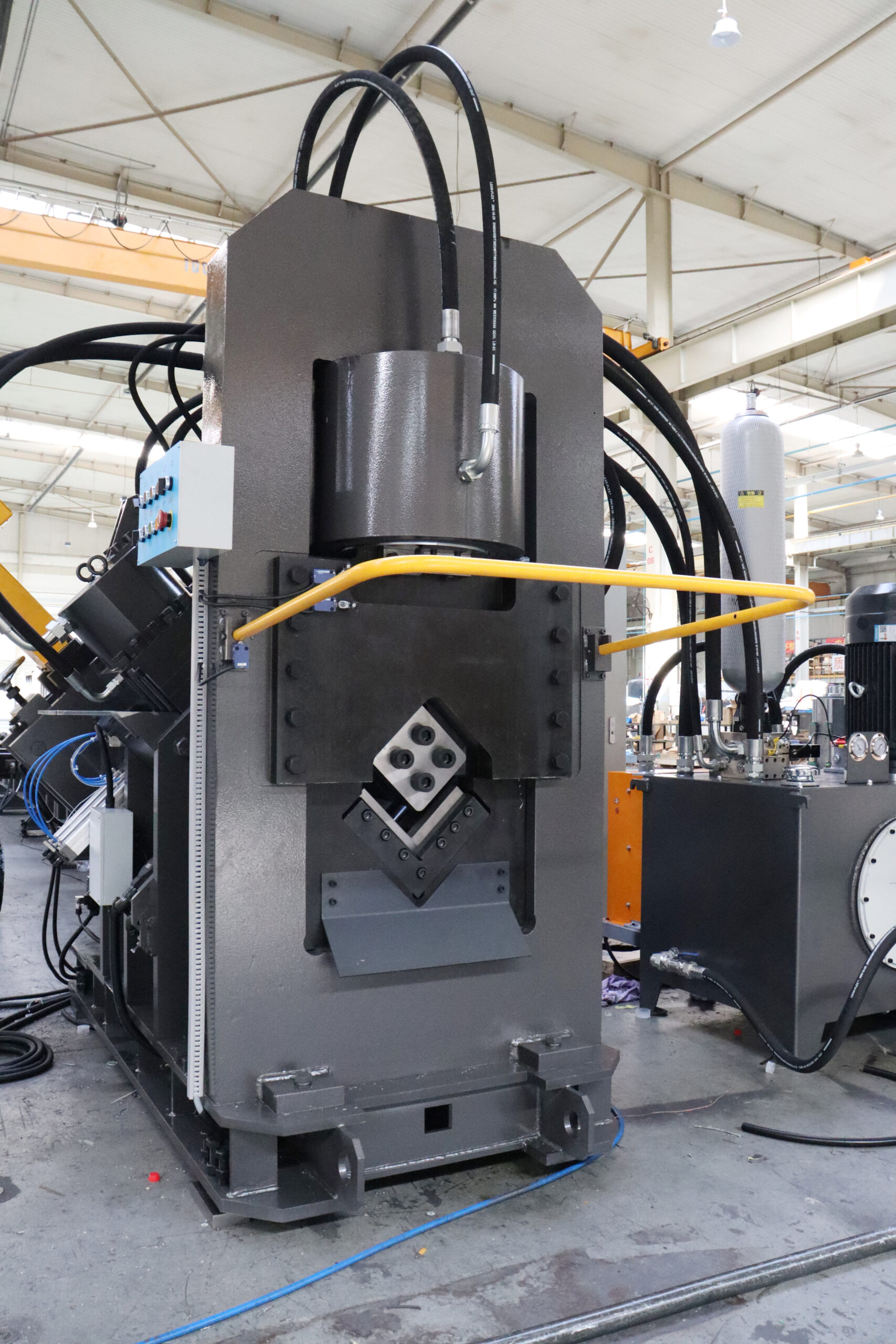

| Double edged cutting unit | Maximum shear angle steel：200*200*24 | mm | |

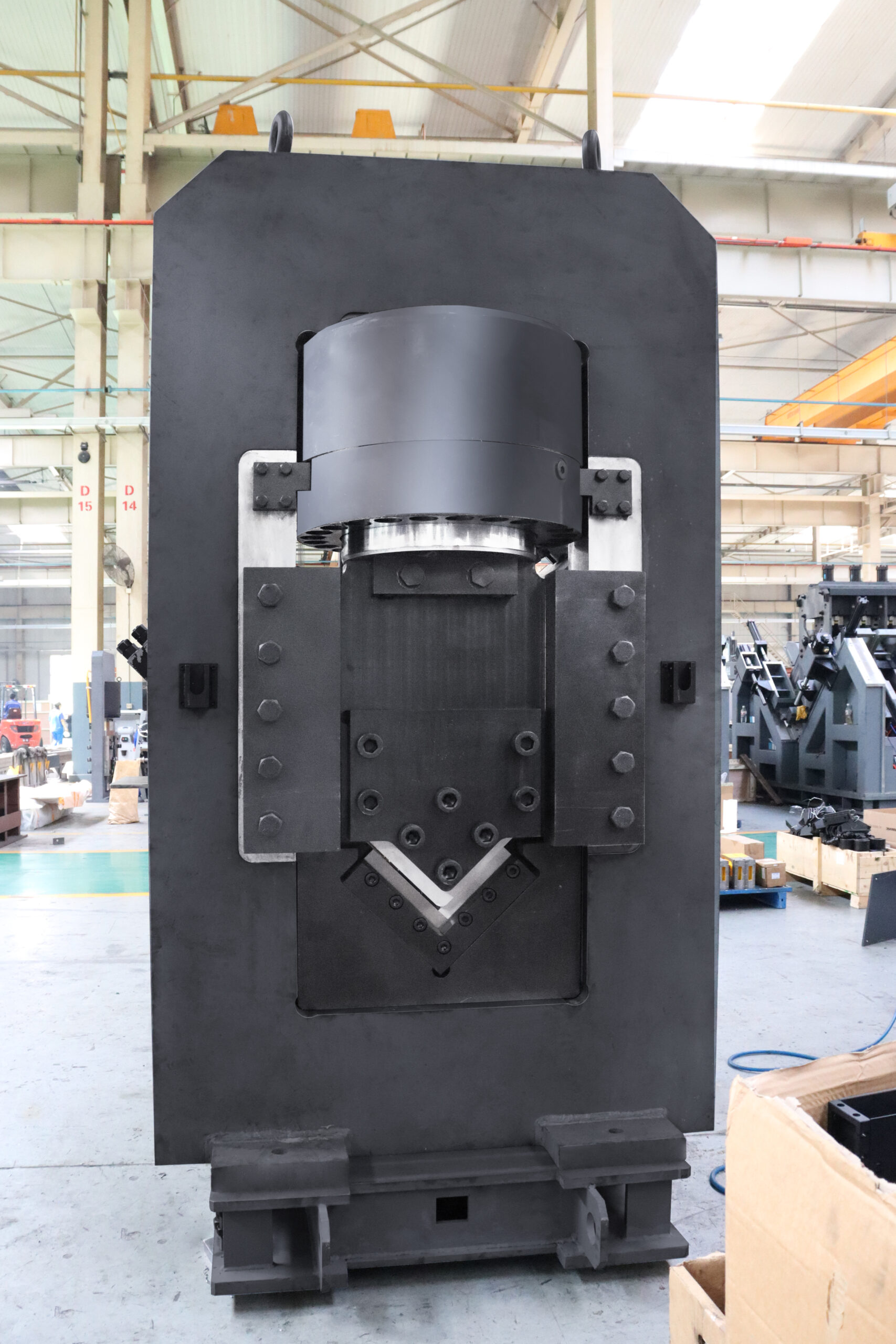

| Single blade cutting unit | Maximum shear angle steel：200*200*20 | mm |
*The above parameters are subject to change without prior notice.
