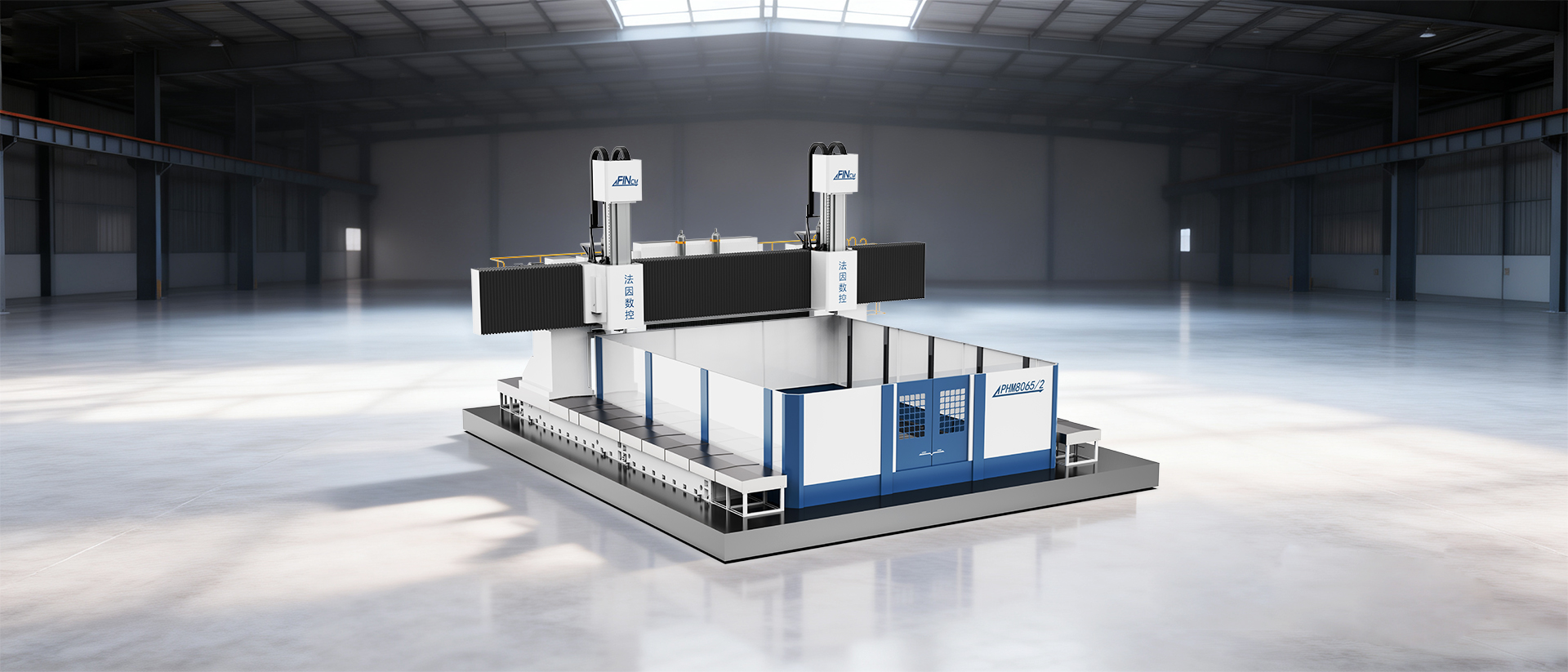

PHM/2 series double spindle gantry movable CNC drilling and milling machine
Suitable for industries such as wind power, pressure vessels, engineering machinery, chemical engineering, and environmental protection, the gantry mobile dual spindle high-speed milling and boring machine adopts a fixed worktable gantry moving method, and has various processing functions such as milling, boring, drilling (drilling, expanding, reaming), and countersunking. Suitable for CNC machining of various large basic components, plates, disks, shells, and other types of parts. We can customize design and manufacturing according to customer needs.
Products detail
| Device Model | PHM6060/2 | PHM8065/2 | PHM8080/2 | PHM100100/2 | |
| Processing range | length × width | 6000*6000 | 8000*6500 | 8000*8000 | 10000*10000 |
| workbench | T-slot width | 28 | |||
| spindle | quantity | 2 | |||
| spindle taper hole | BT50 | ||||
| spindle speed（r/min) | 30-3000 | ||||
| Maximum output power（kW）/torque（Nm） | 37/470（1100 optional） | ||||
| Vertical stroke of slider | mm | 800/1200 | 800/1200 | 800/1200 | 1200/1500 |
| positioning accuracy | X、Y-axis （mm/full length） | ≤0.04 | ≤0.05 | ≤0.05 | ≤0.06 |
| Repetitive positioning accuracy | X、Y-axis（mm） | ≤0.025 | ≤0.030 | ≤0.030 | ≤0.035 |
| Electrical system | CNC system | Siemens 828D |
*The above parameters are subject to change without prior notice.
