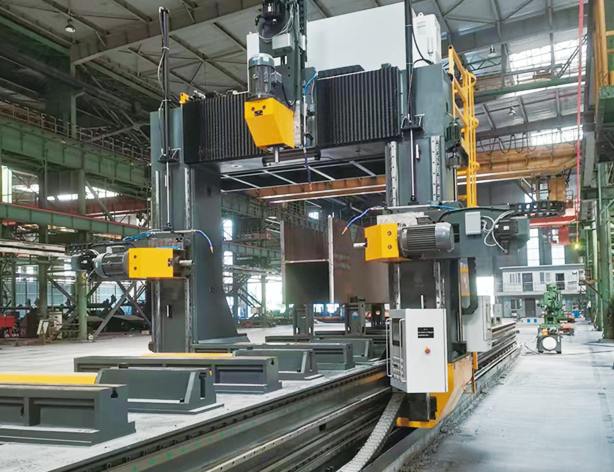

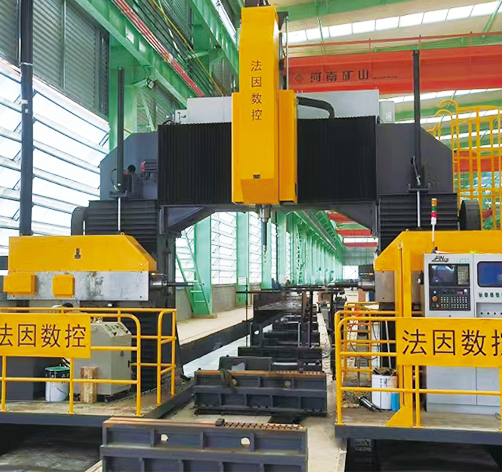

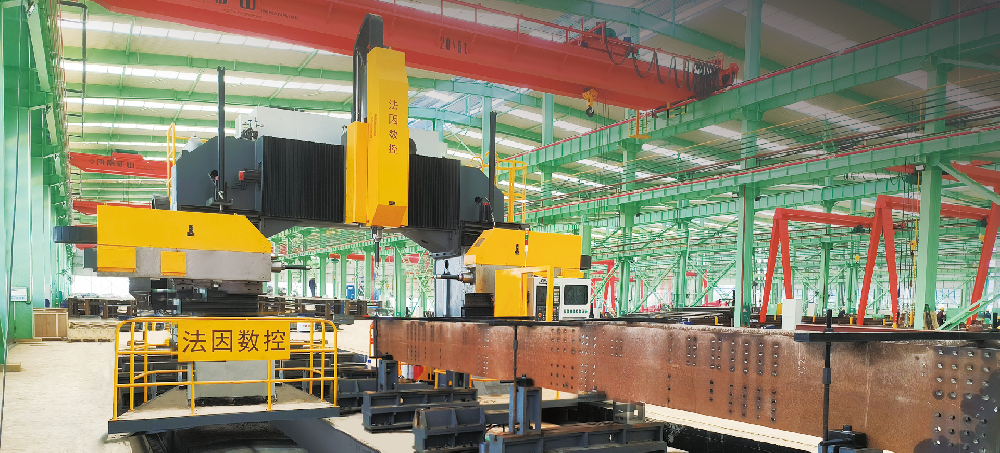

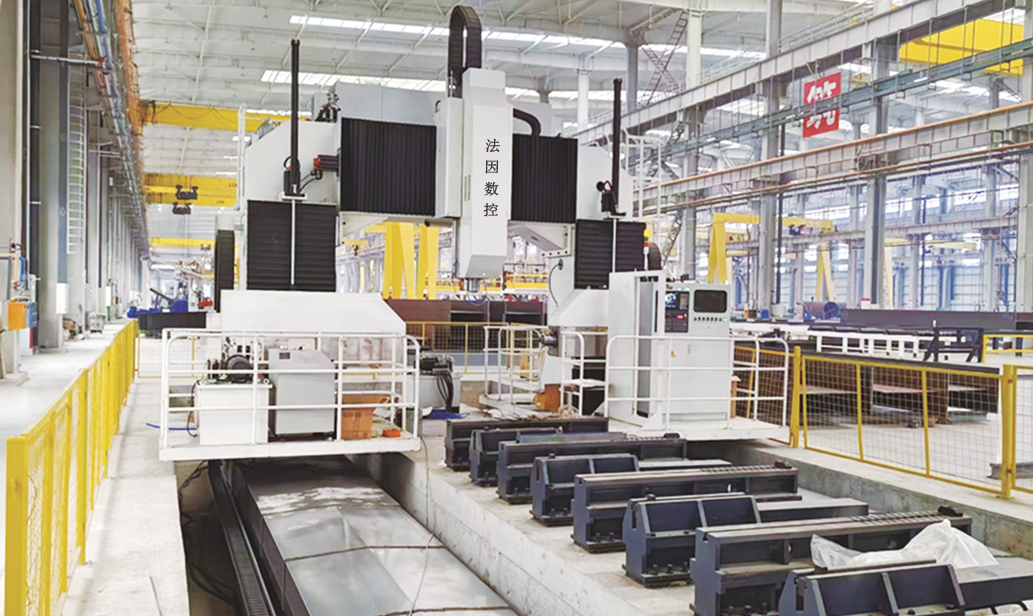

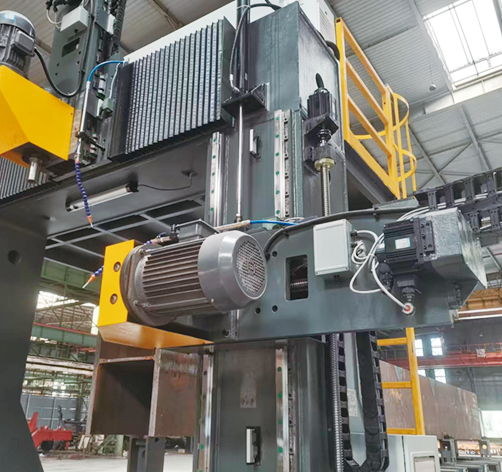

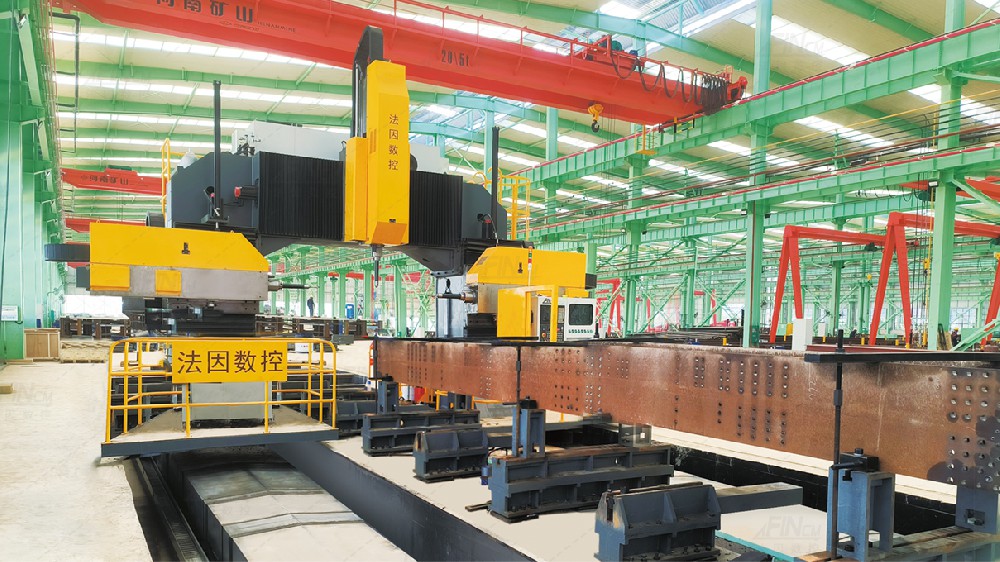

BDH/BDL series gantry mobile 3D CNC drilling machine
BDH/BDL series gantry mobile 3D CNC drilling machine

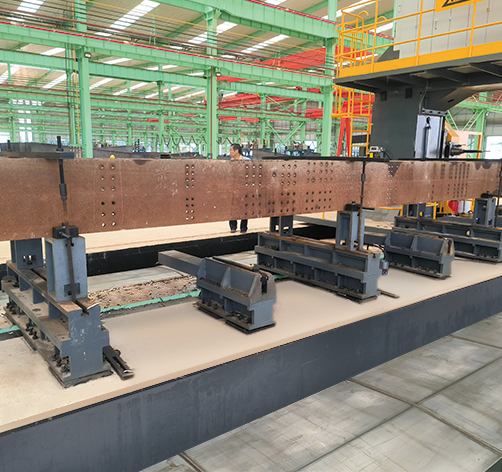

Suitable for processing steel structures of building steel structures, bridges, and steel structures, with three sided drilling and automatic CAD/CAM conversion function
Products detail
| Device Model | BDH1515/3 | BDL2015/3 | BDL3015/3 | unit |
| Web width | 400-1500 | 1000-2000 | 1500-3000 | mm |
| Wing height | 400-1500 | 500-1500 | 500-1500 | mm |
| Number of drilling spindles | 3 | Qty. | ||
| Maximum drilling diameter | Φ40 | Φ50 | Φ50 | mm |
| maximum speed | 3000 | 560 | 560 | rpm |
| spindle power | 18.5 | 7.5 | 7.5 | kW |
| Number of CNC axes | 10 | 8 | 8 | Qty. |
*The above parameters are subject to change without prior notice.
