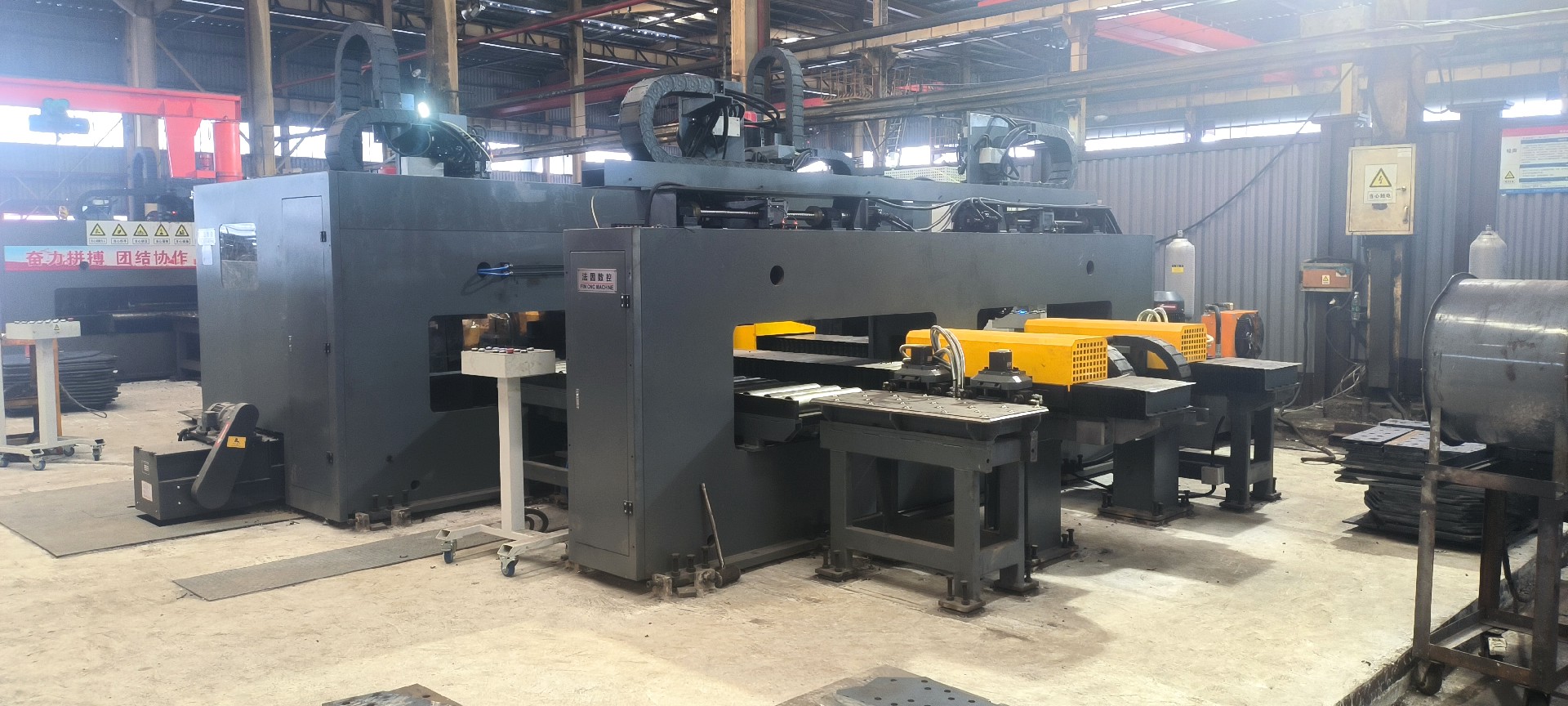

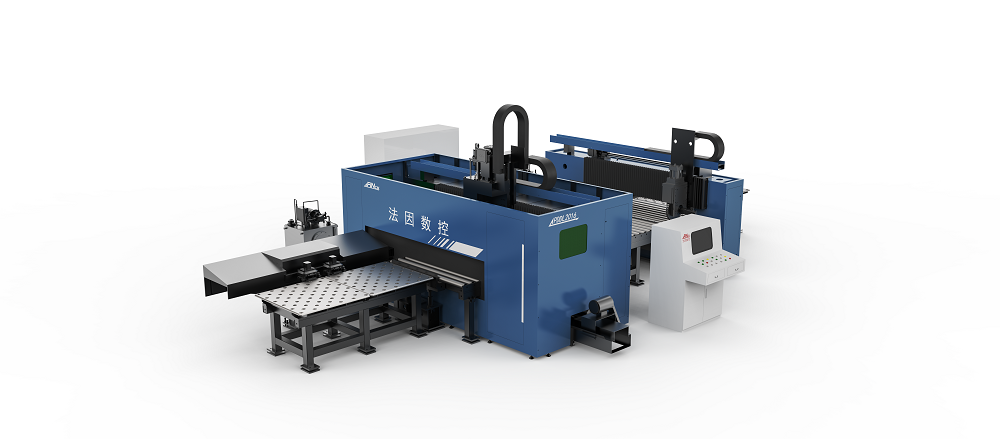

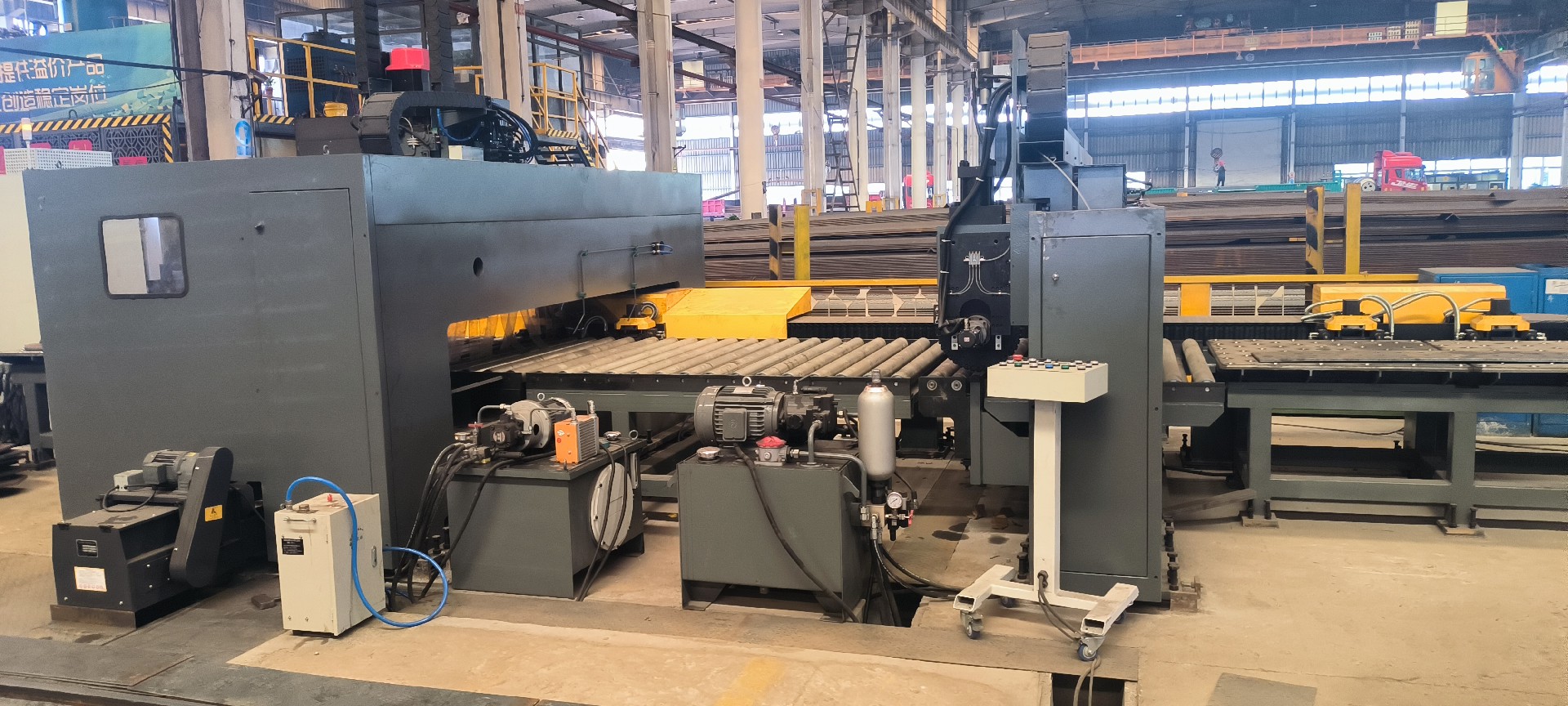

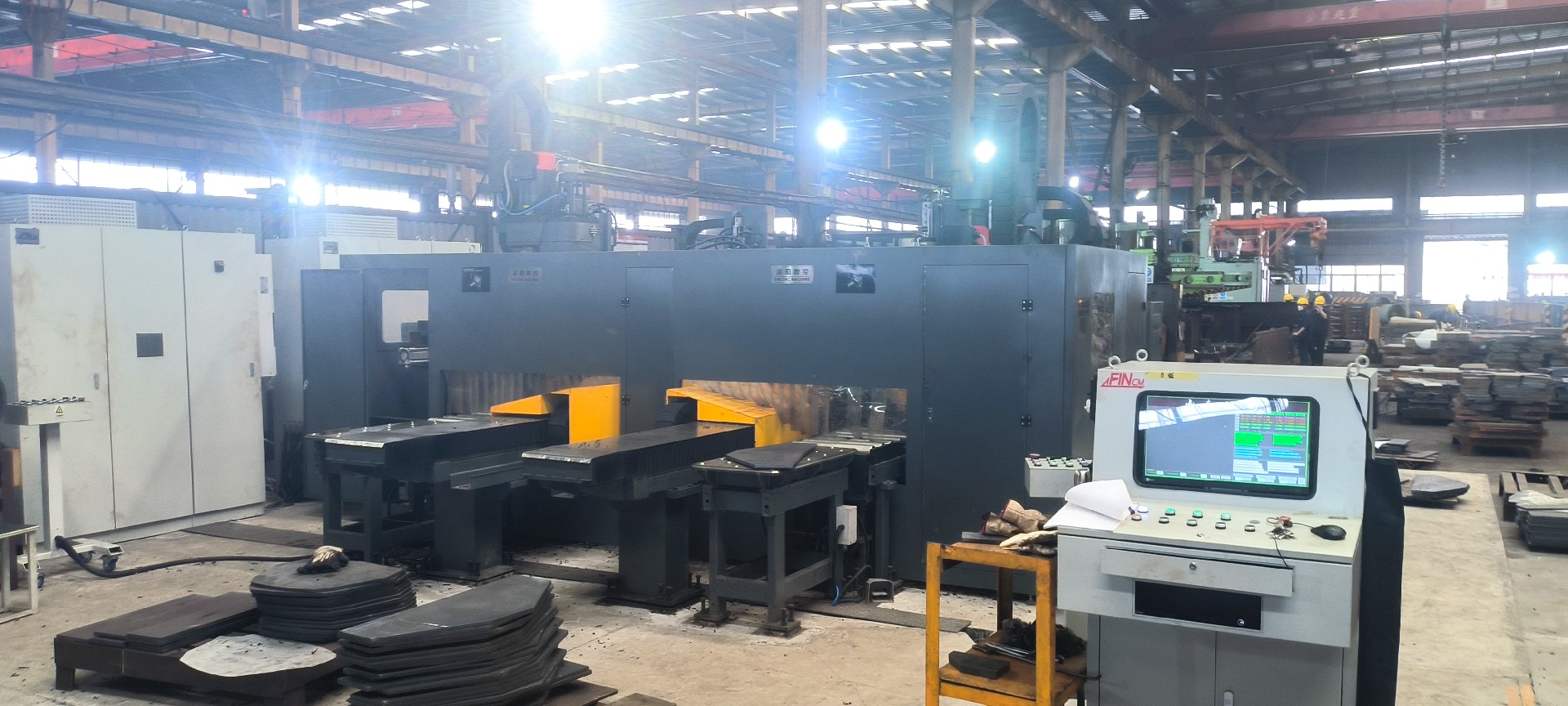

PDDL flat drilling and typing production line
1. Pipeline method, high-speed and efficient. 2 Automatic tool change 3 Optional automatic loading and unloading system
Products detail
| Device Model | PDDL0805/2 | PDDL1610/2 | PDDL2016 | unit |
| Maximum workpiece size | 800*500 | 1600*1000 | 2000*1600 | mm |
| thickness range | 5~25 | mm | ||
| Number of hosts | 2 | 2 | 1 | Qty. |
| Number of drilling spindles | 2 | 2 | 1 | Qty. |
| Maximum drilling diameter | Φ40 | mm | ||
| spindle speed | 0~3000 | rpm | ||
| spindle power | 2*15 | 2*15 | 15 | mm |
| Number of typing units | 2 | 2 | 1 | Qty. |
| Typing method | disc | |||
| Typing ability | 800 | kN | ||
| Initial block size | 14*10*19/20*12*19（optional） | mm |
*The above parameters are subject to change without prior notice.
